MPOLx | MPO Fiber Test Set

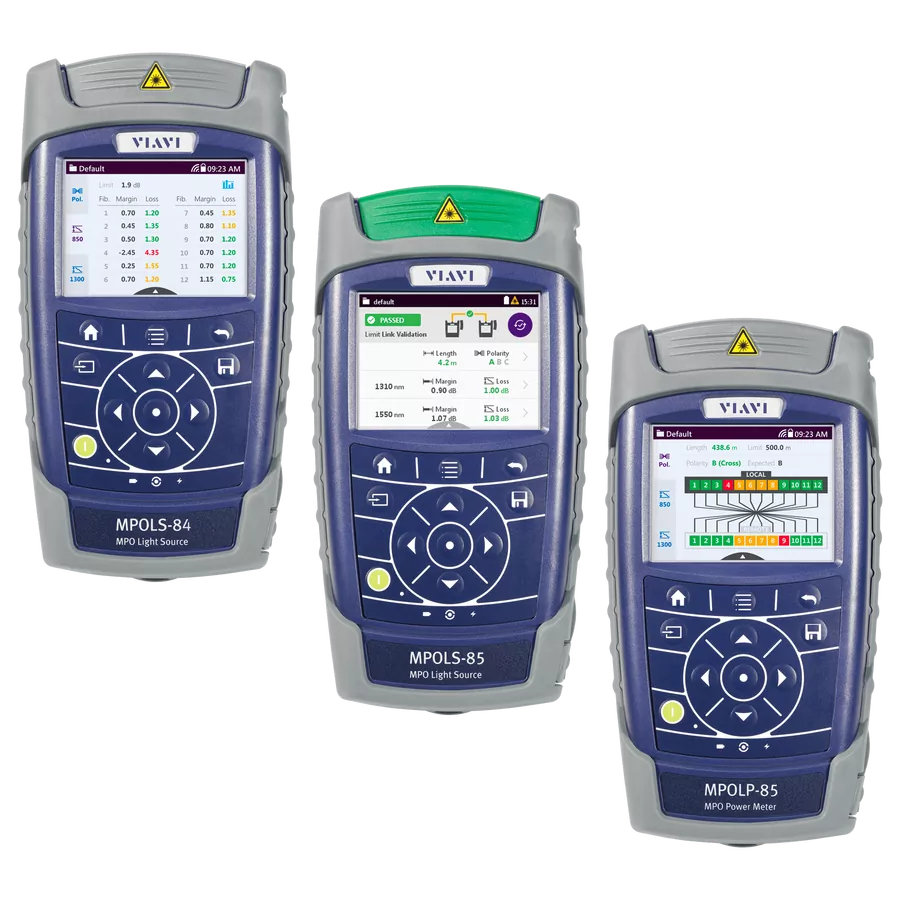

Using VIAVI MPOLx test set, technicians can measure MPO fiber length, MPO wavelength and optical loss; and they check MPO connector polarity, inspect fiber end faces and create network certification reports easily.The MPOLx MPO fiber test set consists of MPOLS-84 andMPOLS-85light source devices and MPOLP-85 light signal power meter.

MPOLx SmartClass Test set provides Tier 1 (Basic) fiber certification and color coded pass/fail test results for each fiber in the MPO connection. Both MPOLx test devices (MPOLS-85P light source and MPOLP-85P power meter) have a 3.5” color touch screen and can give test results of all 12 MPO fibers in 6 seconds.

MPO Test Device Set Specifications

• Fast and reliable test and certification
• Visibility and control at both ends of fiber
• MPO end face inspection and analysis
• Fiber length measurement
• Optical loss measurement
• Multiple wavelengths
• Polarity check for all 12 MPO fibers
• Native and direct MPO testing
• Test results in 6 seconds
• Automated analysis for trunk cables and bulkheads
• Dual wavelength optical light source
• Encircled flux compliant
• 3.5” color touch screen on each device
• Quick certification reports
• All-day battery life
• Compatible with FiberChekPRO
